1.6mm Edging Installation Guide (Corten and Galv)
Mark Out Your Design
Use either a sharp object to scratch lines on the ground or spray paint to mark your desired edging layout.
Once satisfied with the design, furrow (dig a shallow trench) along the marked lines to the required depth.
Tip: A minimum of 1/3 of the edging height should be set below ground level for general use.
Note: If installing along lawn areas, refer to our Lawn Guide for recommended depths to prevent grass runners.
Forming Curves and Bends
For curves:
Place your foot on the edging (keep foot square to ensure smooth curve) and lever up the edging. Apply smooth and constant bend force, and move foot along edging according.
Best results are from increasing radius gradually until happy with the shape.
For tight curves:
-
- Soften the curve design, or
- Make a small cut in the back of the fold to allow cleaner bending.
- Use a round object (like a barrel or large wheel) to bend the edging around.
Creating Corners
-
- Lay a straight edge (e.g. timber or brick) across the edging line.
- Use a square to ensure bend line is 90 degrees to the top edge. This will ensure edging remains level
- Stand on the timber or brick and lever up the edging to your desired corner angle
Connecting Edging Lengths
Connect 3 – 4 shaped edging lengths together using the included connectors:
- Insert the connector under the rolled top edge of the two adjoining pieces.
- Ensure both sections are aligned and sit flush at the top and bottom.
- Secure with screws through both lengths.
Safety Tip: Make sure screws sit below ground level to avoid injury.
- If additional stability is needed, install extra stakes:
- Place each stake under the rolled top edge and screw it into the edging.
- Again, ensure all screws are below the soil line.
Installing the Edging
- Lay the connected edging sections into the furrow at your desired final height.
- Backfill the trench on both sides to support the edging.

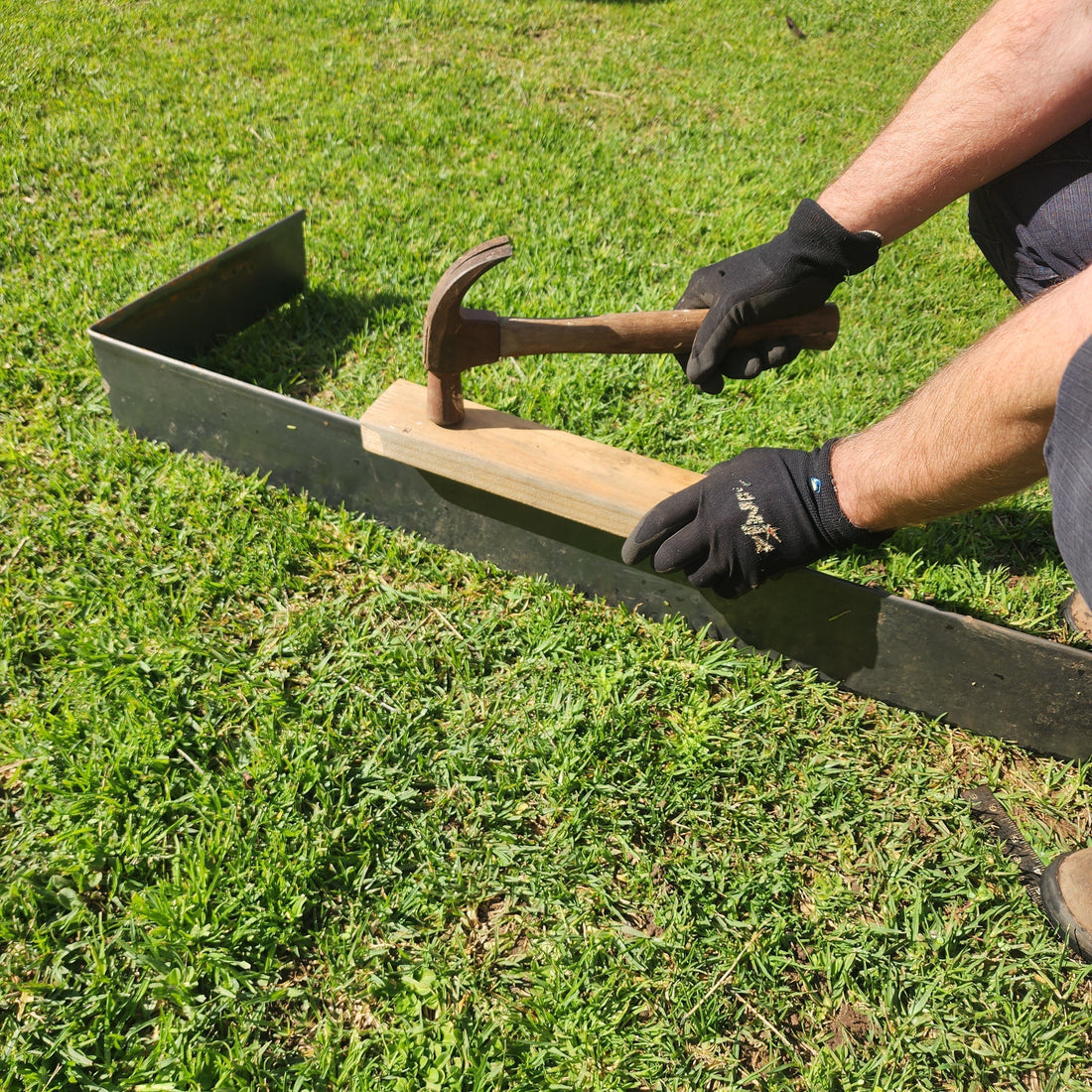

- To set in place tap down with a rubber mallet or use a piece of timber to avoid denting edging. For best results, tap directly over connectors and stakes.
